6018-2RSC3 Sealed Precision Ball Bearing

This chrome steel metric ball bearing features rubber seals on both sides, C3 internal clearance, and pre-lubricated design, making it ideal for high-speed rotating equipment in automotive, robotics, and industrial machinery.

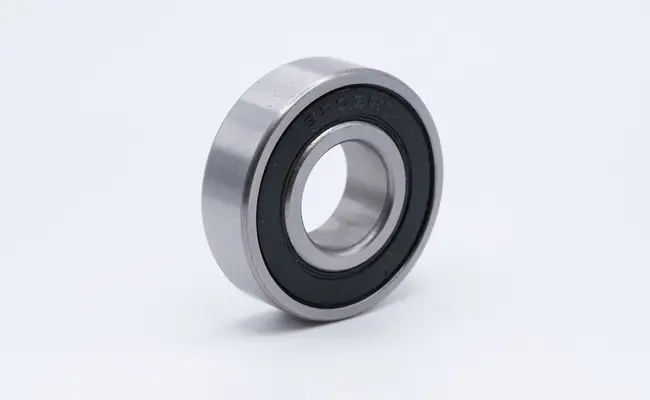

6018-2rsc3 sealed precision ball bearing 2

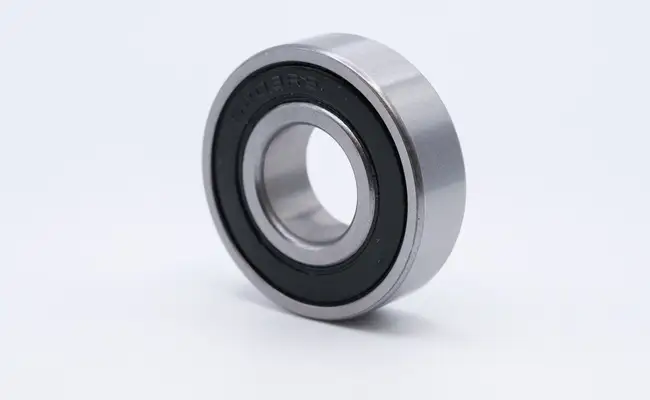

6018-2rsc3 sealed precision ball bearing 3

Premium Construction

Made from high-grade chrome steel SAE-52100 with precision engineering, this bearing delivers consistent performance and long service life under moderate radial and axial loads.

Sealed Protection

Double rubber seals effectively keep lubricant in and contaminants out, reducing maintenance needs and extending bearing life in demanding industrial environments.

Enhanced Clearance Design

C3 internal clearance provides extra room for thermal expansion, making this bearing suitable for applications with varying temperature conditions and high-speed operations up to 4,500 RPM.

Parameters

Details

01 Inner Diameter

90mm

02 Outer Diameter

140mm

03 Width

24mm

04 Static Load Rating

11,200 lbf

05 Dynamic Load Rating

13,100 lbf

06 Speed Limit

4,500 RPM

07 Lubrication

Chevron SRI-2 Grease

08 Country of Origin

China

09 Interchangeable with

6018RSC3, 6018LUC3, 6018LBCM, 6018DUC3, 6018VVCM
