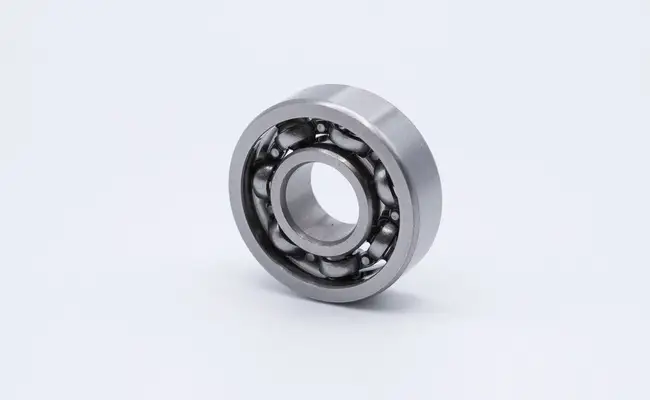

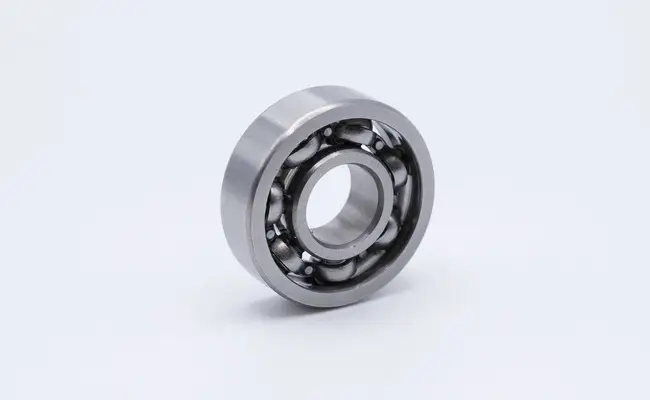

6017C3 Open Type Ball Bearing from ITJ

This high-performance metric ball bearing offers reliable operation in various machinery, featuring C3 radial clearance, light oil lubrication, and excellent load capacity for electric motors, gearboxes, and power transmission equipment.

6017c3 open type ball bearing from itj 2

6017c3 open type ball bearing from itj 3

Premium Material Construction

Made from Chrome Steel SAE-52100, this bearing delivers superior durability and performance under moderate radial and axial loads, making it ideal for continuous industrial operations.

Enhanced Clearance Design

The C3 internal clearance provides optimal radial slack between rings, compensating for thermal expansion during operation and ensuring smooth performance across various temperature conditions.

Versatile Application Range

Pre-lubricated with light oil, this open-type bearing is ready for immediate use in electric motors, pumps, turbines, textile machines, and various power transmission applications.

Parameters

Details

01 Dimensions

85mm (ID) × 130mm (OD) × 22mm (Width)

02 Type

Open Design

03 Material

Chrome Steel SAE-52100

04 Lubrication

Light Oil

05 Load Ratings

Static 9,700 lbf, Dynamic 11,100 lbf

06 Maximum Speed

5,600 RPM

07 Internal Clearance

08 Country of Origin

Japan

09 Interchange Numbers

6017C3, 6017CM, 9117, 9117K, 3L17, 117KS

10 Availability

Ships within 24 hours

11 Bulk Discounts Available

5% off (10-24 units), 10% off (25-49 units), 15% off (50+ units)
