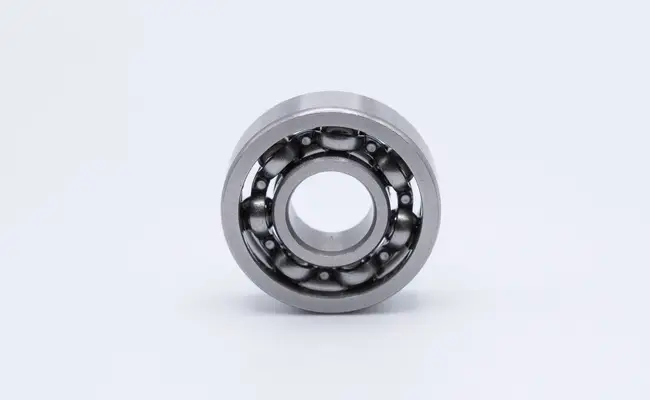

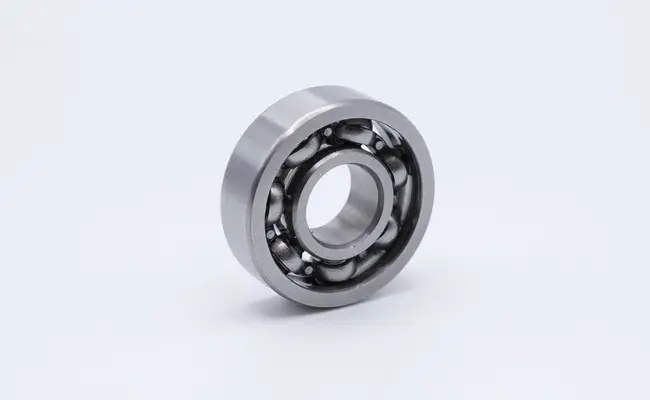

6016C3 Open Type Ball Bearing

This precision metric ball bearing features C3 internal clearance, chrome steel material, and open-side design, ideal for industrial applications requiring reliable performance under moderate radial and axial loads.

Internal Clearance Design

The C3 internal clearance design provides optimal room for thermal expansion between races, ensuring smooth operation and extended bearing life even under varying temperature conditions.

Premium Chrome Steel

Premium chrome steel SAE-52100 construction delivers excellent durability and load-bearing capacity, with impressive static load rating of 8,950 lbf and dynamic load rating of 10,700 lbf.

Pre-Lubricated

Pre-lubricated with light oil and open on both sides, this bearing comes ready for immediate installation and offers effective performance in high-speed applications up to 5,900 RPM.

Parameters

Details

01 SKU

6016C3-ITJ

02 Inner Diameter

80mm

03 Outer Diameter

125mm

04 Width

22mm

05 Material

Chrome Steel SAE-52100

06 Closure Type

Open

07 Lubrication

Light Oil

08 Static Load

8,950 lbf

09 Dynamic Load

10,700 lbf

10 Speed Limit

5,900 RPM

11 Interchange Numbers

6016CM, 9116, 9116K, 3L16, 116KS
