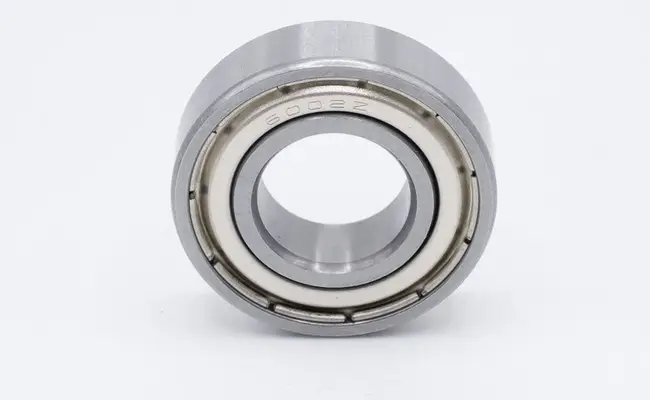

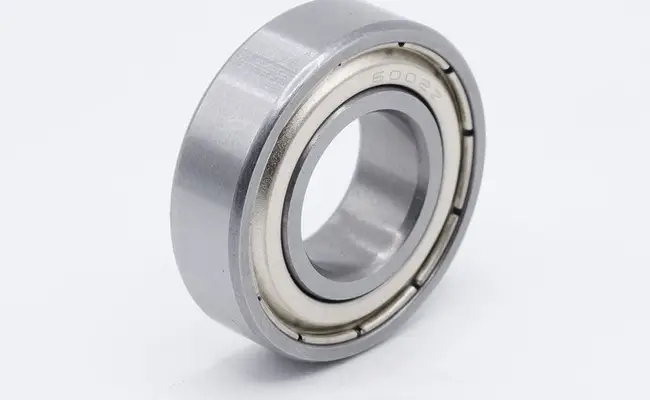

6016-ZZC3 Shielded Ball Bearing

This precision metric ball bearing features double metal shields, pre-lubricated construction, and chrome steel material, designed for reliable performance in various industrial and mechanical applications.

Premium Construction

Made from high-grade Chrome Steel SAE-52100, this bearing delivers exceptional durability and wear resistance. The C3 radial internal clearance provides optimal thermal expansion compensation, ensuring consistent performance under varying temperatures.

Advanced Sealing Protection

Double metal shields on both sides protect against dust and debris while retaining the pre-applied Chevron SRI-2 grease. This design minimizes maintenance needs and extends bearing life in demanding environments.

Versatile Performance

Capable of handling both radial and axial loads, with a dynamic load rating of 10,700 lbf and static load of 8,950 lbf. The 5,000 RPM speed limit makes it suitable for various high-speed applications.

Parameters

Details

01 Inner Diameter

80mm

02 Outer Diameter

125mm

03 Width

22mm

04 Material

Chrome Steel SAE-52100

05 Closure Type

Metal Shielded (Both Sides)

06 Lubrication

Chevron SRI-2 Grease

07 Dynamic Load

10,700 lbf

08 Static Load

8,950 lbf

09 Speed Limit

5,000 RPM

10 Origin

Japan

11 Compatible Part Numbers

6016ZC3, 6016 2ZC3, 116SS, 6016ZZCM, 6016.2ZJ1C3, 116KSFF, 9116DD, 773L16
