6013-ZZ Metal Shielded C3 Precision Ball Bearing

This high-performance chrome steel ball bearing features metal shields on both sides, C3 internal clearance, and premium Chevron SRI-2 grease lubrication, designed for reliable operation in demanding industrial environments.

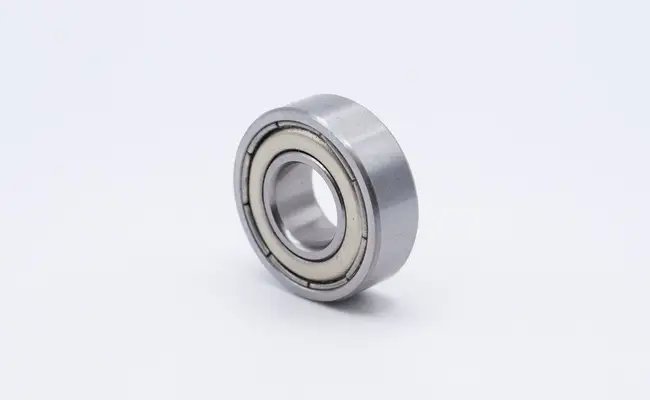

6013-zz metal shielded c3 precision ball bearing 2

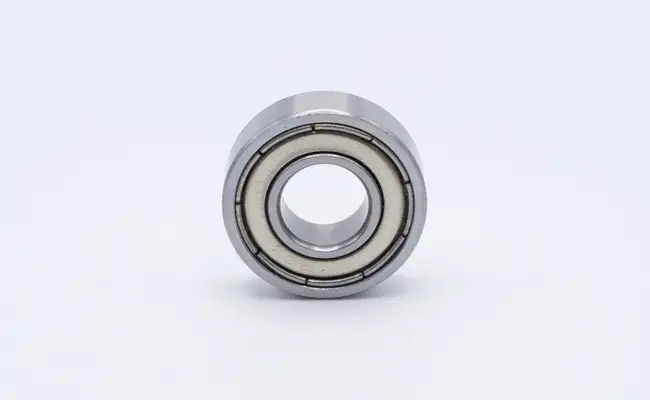

6013-zz metal shielded c3 precision ball bearing 3

Premium Construction and Protection

Made from SAE-52100 chrome steel with dual metal shields, this bearing provides excellent protection against contamination while maintaining optimal performance in various operating conditions. The C3 clearance allows for thermal expansion during operation.

Enhanced Load Capacity

Engineered to handle dynamic loads up to 6,850 lbf and static loads up to 5,650 lbf, this bearing delivers dependable performance in applications requiring both radial and axial load support at speeds up to 6,200 RPM.

Versatile Industrial Applications

Specifically designed for use in electric motors, gearboxes, pumps, turbines, and various industrial machinery. The pre-lubricated design ensures immediate readiness for installation and reduced maintenance requirements.

Parameters

Details

01 SKU

6013-ZZC3-ITJ

02 Inner Diameter

65mm

03 Outer Diameter

100mm

04 Width

18mm

05 Material

Chrome Steel SAE-52100

06 Lubrication

Chevron SRI-2 Grease

07 Dynamic Load

6,850 lbf

08 Static Load

5,650 lbf

09 Speed Limit

6,200 RPM

10 Interchange Numbers

6013ZC3, 6013 2ZC3, 113SS, 6013ZZCM, 6013.2ZJ1C3, 113KSFF, 9113DD, 773L13
