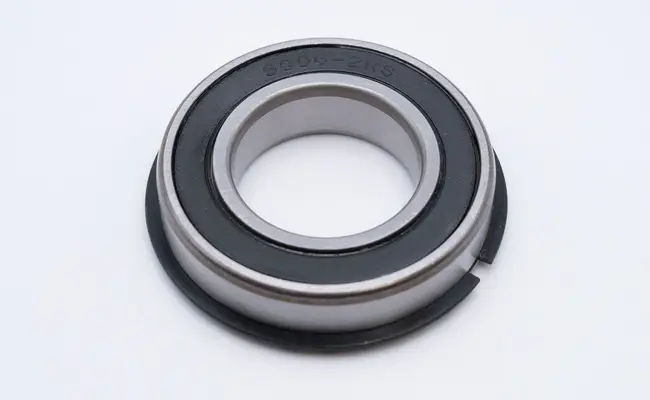

6010-2RSNR Sealed Ball Bearing with Snap Ring

This premium chrome steel ball bearing features rubber seals on both sides and includes a snap ring, designed for reliable performance in various industrial and mechanical applications.

6010-2rsnr sealed ball bearing with snap ring 2

6010-2rsnr sealed ball bearing with snap ring 3

Durability and Protection

The double rubber seals keep dirt and contamination out while maintaining lubrication, extending the bearing’s life and reducing maintenance needs. Pre-lubricated with Chevron SRI-2 grease for immediate use.

High-Performance Design

Built to handle both radial and axial loads, this bearing supports dynamic loads up to 4,900 lbf and static loads up to 3,750 lbf. The design allows for speeds up to 8,500 RPM, making it suitable for various motor and machinery applications.

Versatile Applications

Commonly used in electric motors, pumps, conveyor systems, and agricultural machinery. The bearing’s precise engineering and sealed design make it ideal for environments where reliability and low maintenance are essential.

Parameters

Details

01 Inner Diameter

50mm

02 Outer Diameter

80mm

03 Width

16mm

04 Material

Chrome Steel SAE-52100

05 Sealing

Double rubber sealed (2RS)

06 Snap Ring

Included (NR)

07 Load Rating (Dynamic)

4,900 lbf

08 Load Rating (Static)

3,750 lbf

09 Maximum Speed

8,500 RPM

10 Interchange Numbers

6010-2RSNR, 6010DDUNR, 60102RSNR
